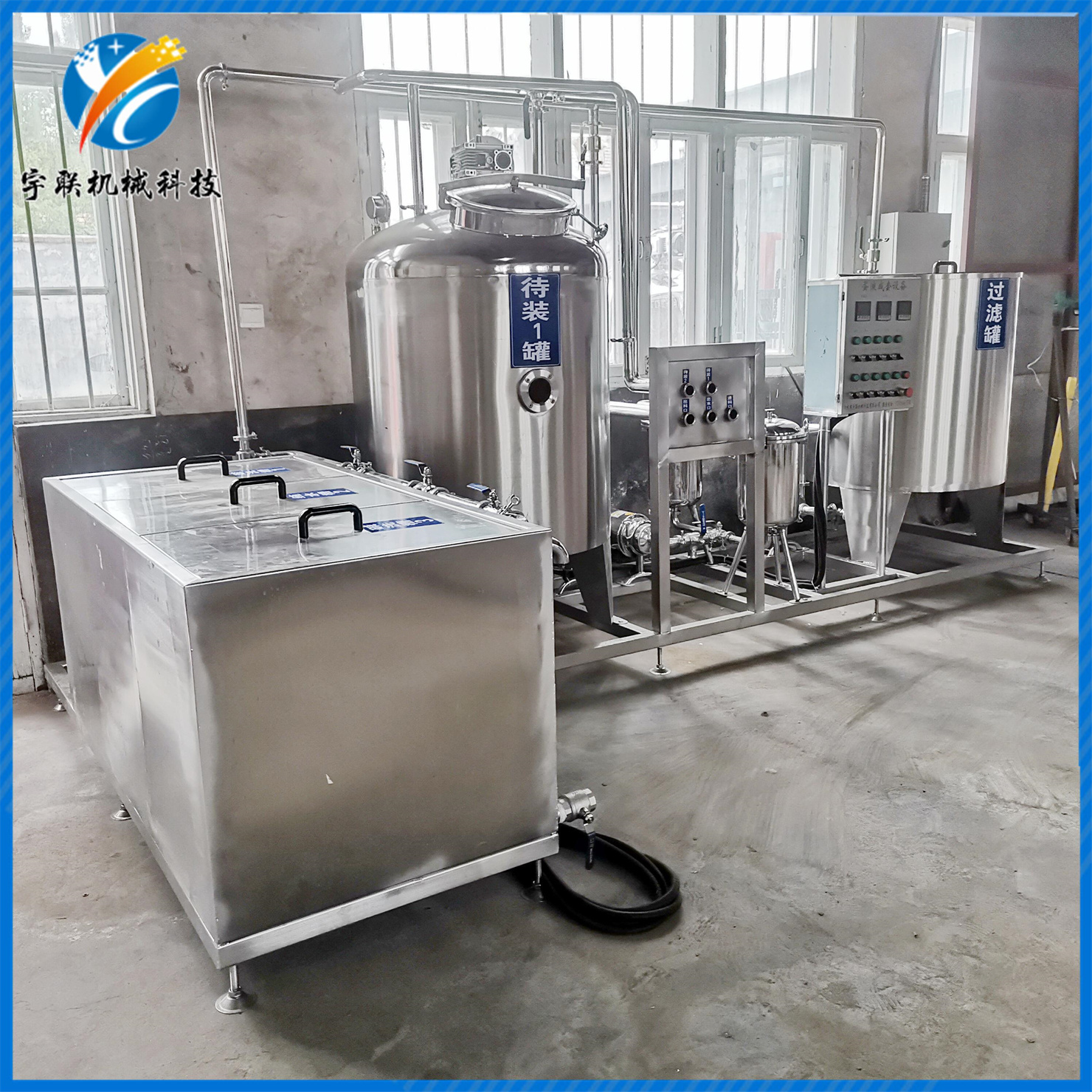

本套流水線由泵站、暫存罐、多級過濾層、旋震過濾器、雙聯過濾器、待儲罐、CIP在線清洗器、管道及閥門等多個部件組成。采用多層網狀結構組成的過濾系統和雙聯過濾器共七層結構保證過濾的精準度。

  過濾后的產品會進入待儲罐內進行存儲，方便隨時調用。

  整套設備配備CIP在線清洗系統對罐體及管道進行無拆卸清洗。暫存罐采用獨特的沉降分層結構進行物料存儲?？梢酝ㄟ^(guò)出料閥放出干凈的物料，高密度的物料會經由排污口排出罐體外，錐球體的罐體機構保證了罐體內無死角及物料殘留。物料在泵站的作用下進入雙聯過濾裝置，裝置上設有兩個三通閥門，可以隨時不停機清洗任何一個過濾器內的篩網，方便快捷。過濾器內部所有部件均可拆卸，并有多種篩網可供選擇，滿足不同精度的過濾需求。整套流水線設有多個自由接口，可以方便快捷的連接巴氏殺菌罐，脫氣罐，冷藏罐，出料泵站等多種模塊。整套設備結構設計合理，造型美觀大方。罐體采用啞光板制造，外觀光亮整潔。

  This assembly line is composed of pump station, temporary storage tank, multi-stage filter layer, rotary vibration filter, duplex filter, storage tank, CIP online cleaner, pipeline and valve, etc. The filtration system composed of multi-layer mesh structure and duplex filter have a total of seven layers to ensure the accuracy of filtration.

  The filtered products will be stored in the storage tank for easy access at any time.

  The whole set of equipment is equipped with CIP online cleaning system to clean the tank and pipeline without disassembly. The temporary storage tank adopts a unique settling layered structure for material storage. Clean materials can be discharged through the discharge valve. High density materials will be discharged out of the tank through the drain outlet. The cone sphere tank mechanism ensures that there are no dead corners and material residues in the tank. Under the action of the pump station, the materials enter the duplex filtering device. The device is equipped with two three-way valves, which can clean the screen in any filter at any time without stopping the machine. It is convenient and fast. All parts inside the filter can be disassembled, and a variety of screens can be selected to meet the filtering requirements of different precision. The whole assembly line is equipped with multiple free interfaces, which can easily and quickly connect pasteurization tank, degassing tank, refrigeration tank, discharge pump station and other modules. The structure of the whole set of equipment is reasonably designed, and the appearance is beautiful and generous. The tank body is made of matte plate, with bright and clean appearance.
